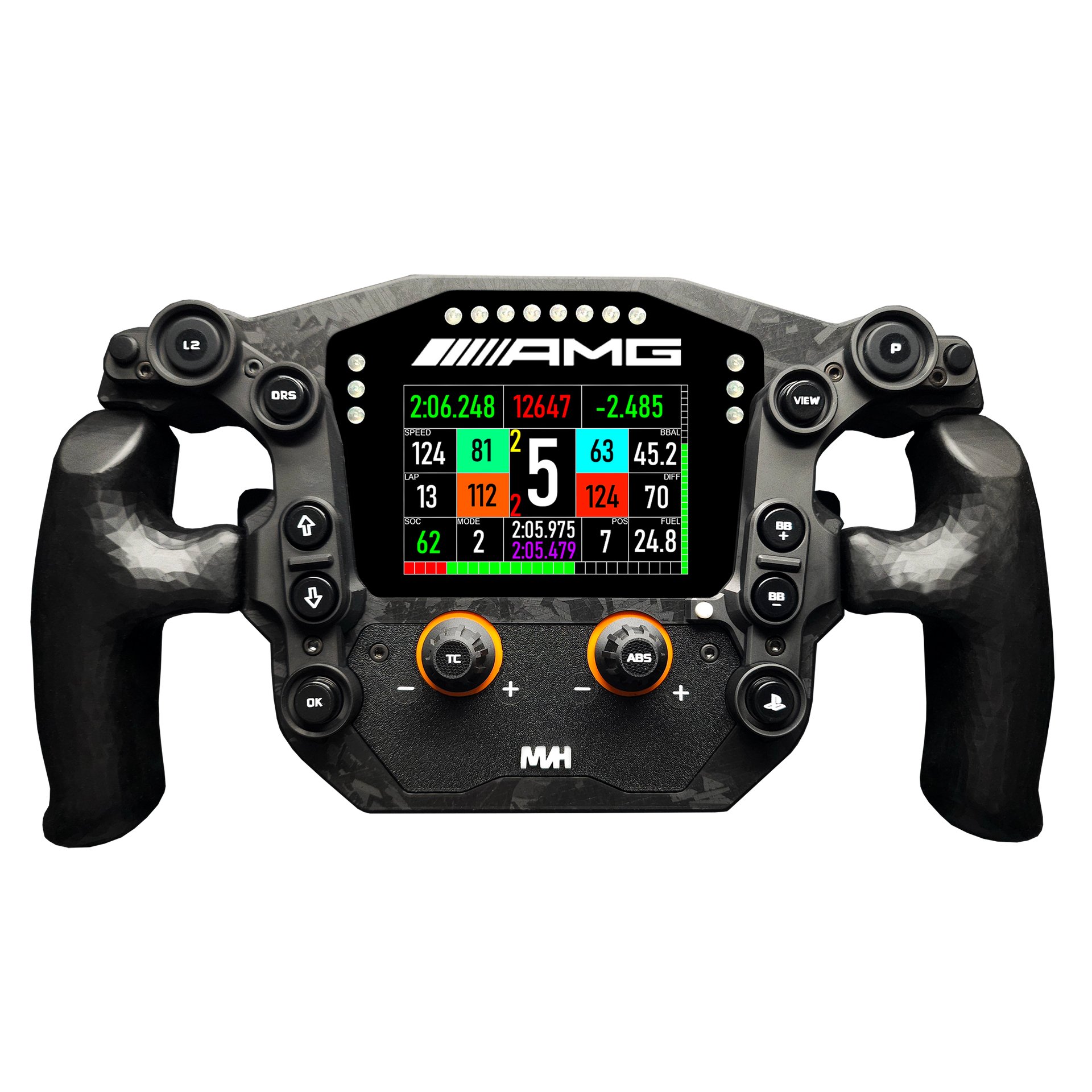

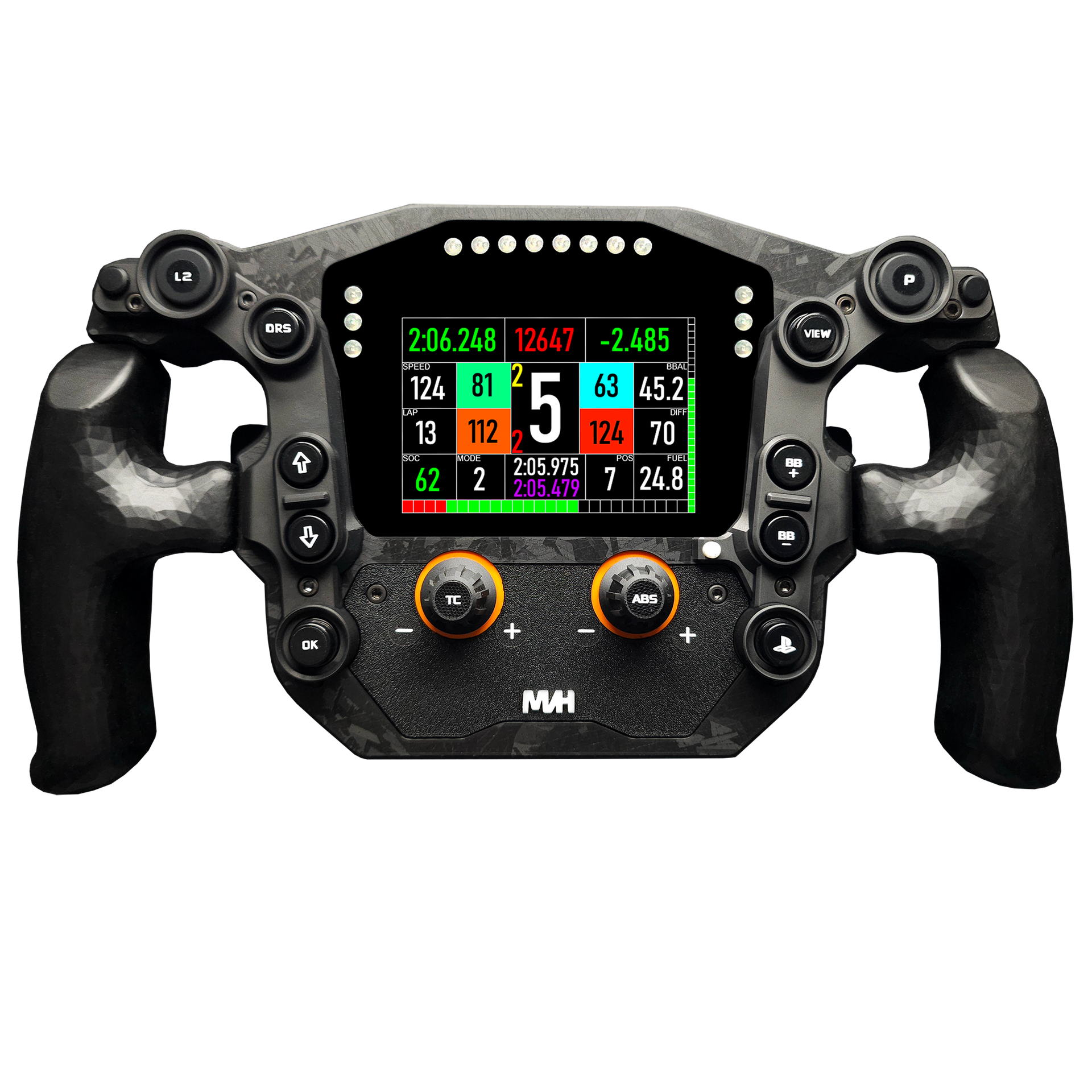

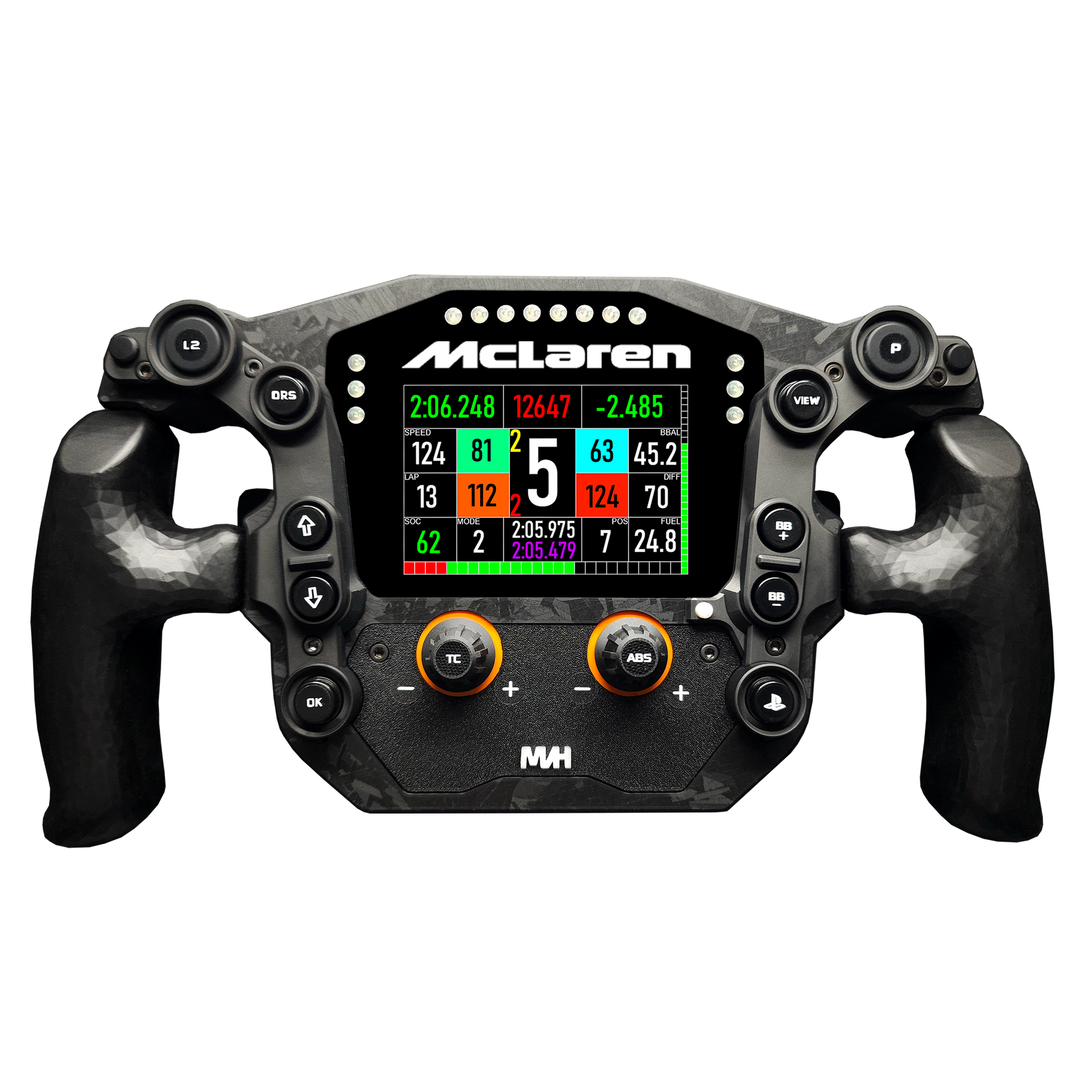

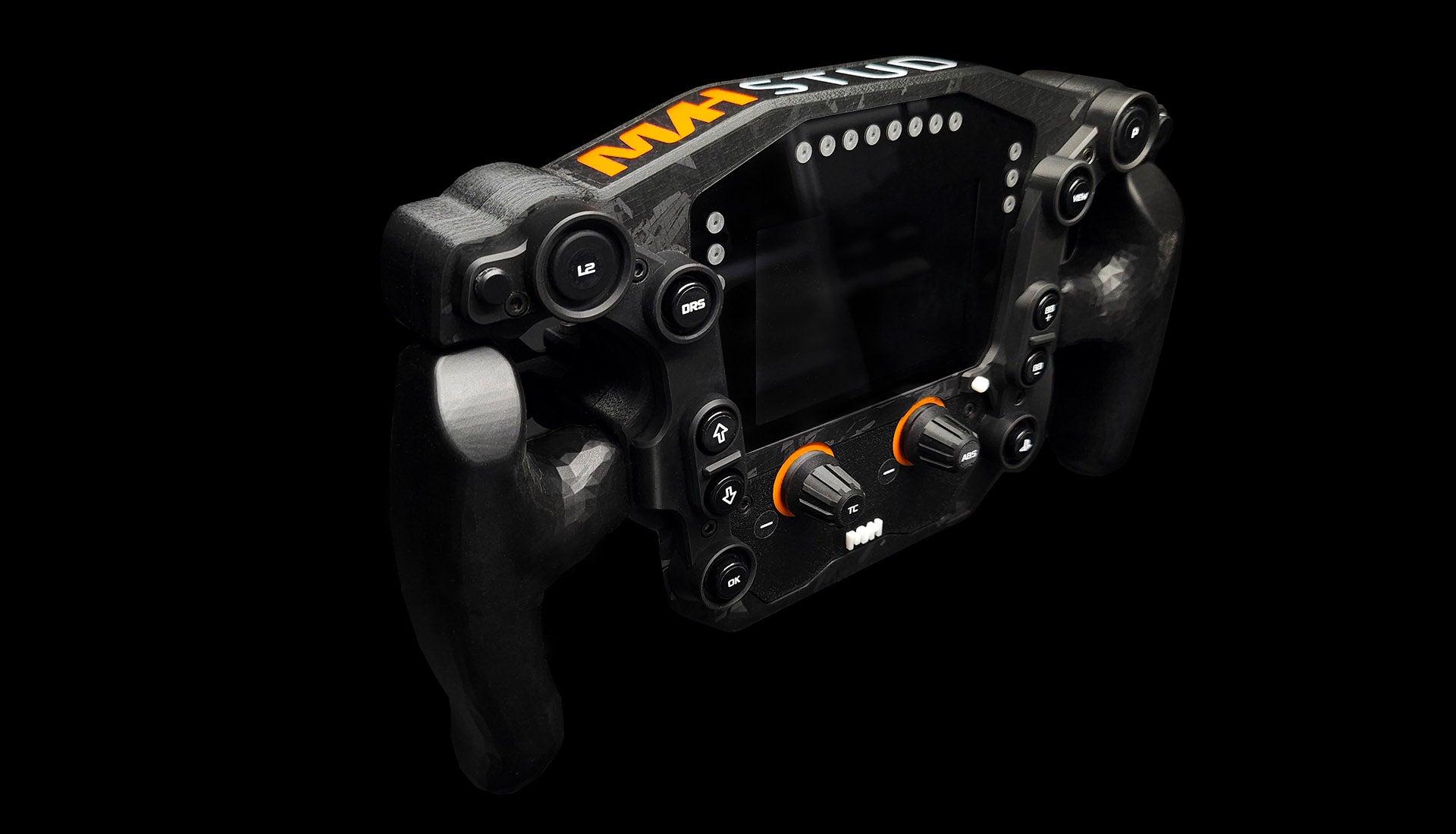

Description

The brand new F1S Series 3 is a wheel replacement with integrated electronics for the Logitech stock round wheel and can be transferred to many other systems. At 285mm diameter the overall weight is 300 grams less than the stock Logitech wheel, giving noticeable better force feedback. It features adjustable, magnetic shifter paddles and is fully quick release compatible.

Design

We want to make sim racing affordable without locking you into an ecosystem. So we designed our F1S Series 3 to bridge the gap from entry level sim racing to pro level sim racing by making it possible to use the same wheel on an entry level wheelbase such as the Logitech G29/G920/G923 series and then seamlessly, connect it to a Direct Drive wheelbase from other sim racing brands.

Logitech Compatibility and Beyond

The F1S is designed to be compatible with the Logitech G29/G920, G923Xbox, G923 Playstation but it is not confined to this system. Due to our custom electronics you have all the inputs you need to play on Playstation 4/5, Xbox and of course PC. Additionally, features such as the integrated telemetry will work independently of the system you are playing on. Should you decide to upgrade to a different wheelbase, your F1S Series 3 will transition with you as it is compatible with many newer, direct drive systems.

Fanatec Compatibility

The Series 3 wheel line is compatible with Fanatec (DD1, DD2, CSL DD, DD Pro, DD+, DD Extreme, DD Clubsport) on PC and Playstation (Xbox is not supported). We achieved this by integrating our own electronics which emulates the Fanatec wheel electronics, enabling the Force Feedback without the need of a podium hub. You will only require the QR1 or QR2 quick release, depending on your Fanatec wheelbase. The F1L emulates a Fanatec Clubsport Porsche 918 RSR wheel within the Fanatec app in PC mode. Please also note that there are limitations on which buttons and dials can be mapped as the wheel offers more buttons than a standard Fanatec wheel. Please see our FAQ and support centre for details.

Thrustmaster Compatibility

The Series 3 wheel line is compatible with most Thrustmaster systems that use the original, screw based quick release (please check the compatibility list in our support centre). We achieved this by integrating our own electronics which emulates the Thrustmaster wheel electronics. Please also note that there are limitations on which buttons and dials can be mapped as the wheel offers more buttons than a standard Thrustmaster wheel and in some cases only PC can be supported (depending on the Thrustmaster servo base). Please see our FAQ and support centre for details.

Moza, Simagic, Simucube and more

With the F1S Series 3 we created a wheel that is compatible with Simucube, Simagic, Moza (R16, R12, R9, R5, R3) and any other direct drive system that will accept third party PC based wheels with a 70mm standard 6 hole wheel pattern (Xbox is not supported on any wheelbase outside of G920 or G923Xbox Logitech and Xbox Thrustmaster systems). When connected to a PC with the supplied coiled cable, it becomes a USB device that is recognized as a Windows game controller. Please note, we do not include the quick release of the various wheelbases at the moment. Only Logitech G Series mounts and Thrustmaster mounts will not require any addtional quick release.

Playstation and Xbox

The F1S will work on PS5 and Xbox. Depending on the Logitech wheelbase you have, choose the correct mount version of the F1S Series 3. Note that while the F1S has many inputs, G920 wheels have less and not all can therefore be mapped. See the support centre for which buttons are mappable. Please note that Xbox is only supported when using a G series Logitech wheelbase (G923Xbox and G920).

Quick Release

The Series 3 is compatible with our quick release system but it is not a requirement. All F1S G Series wheels ship with a permanent connector which directly mounts the wheel onto your Logitech G29/G920/G923. Should you wish to use it with our quick release, choose the F1S S3 MVH Quick Release mount option as well as the motor mount to your order. If you prefer to use the F1S Series 3 as your permanent replacement to the stock Logitech round wheel you will not need anything else. See our quick release FAQ for more details.

4.0 inch Telemetry Display

The 4.0 inch telemetry display is fully compatible with any game (for example Gran Turismo 7, F1, etc). that provides telemetry data via Wifi. It features the same game support as our popular stand alone Telemetry Display as well as free over the air updates and support. Due to the energy efficient design, the integrated display will not need any cable when used on a Logitech G29/G920/G923 or on a Fanatec system.

RGB REV LEDs and Flag LEDs

The F1S features fully adjustable REV LEDs and Flag LEDs. This feature also works on the Logitech G920 as it is being controlled through our own electronics. Please note, this feature requires telemetry data from the game - see our supported games list in the support centre.

Button Stickers and Caps

As standard the F1S ships with a high quality vinyl, sticker sheet. Additionally, we offer ABS injection molded, colour button caps and team stickers (not included).

Grips and materials

One of the most important aspects of a wheel is how it feels in your hand which is why we have opted to cast the F1S grips out of durable polyurethane (60A shore scale). The ergonomic design and the new LowPoly grip pattern ensure a solid grip while being soft enough for long sessions without the need to wear gloves, no matter how hard you race.

Carbon Fibre PLA enclosure

We use the latest carbon fiber reinforced PLA with improved stiffness and strength for all our enclosures. PLA-CF exceeds the mechanical properties of standard PLA in bending resistance and impact strength by between 20% and 115%, Additionally we use SLA printers to manufacture most of the additional parts to achieve ABS like properties and finish, as well as CNC machined parts.

Release date

The F1S is now shipping to all customers on the waiting list. We expect to be able to make the F1S available for immediate purchase by the end of July 2025. For any further questions please hop onto our Discord where our team and active MVH Studios community is happy to help you out.
