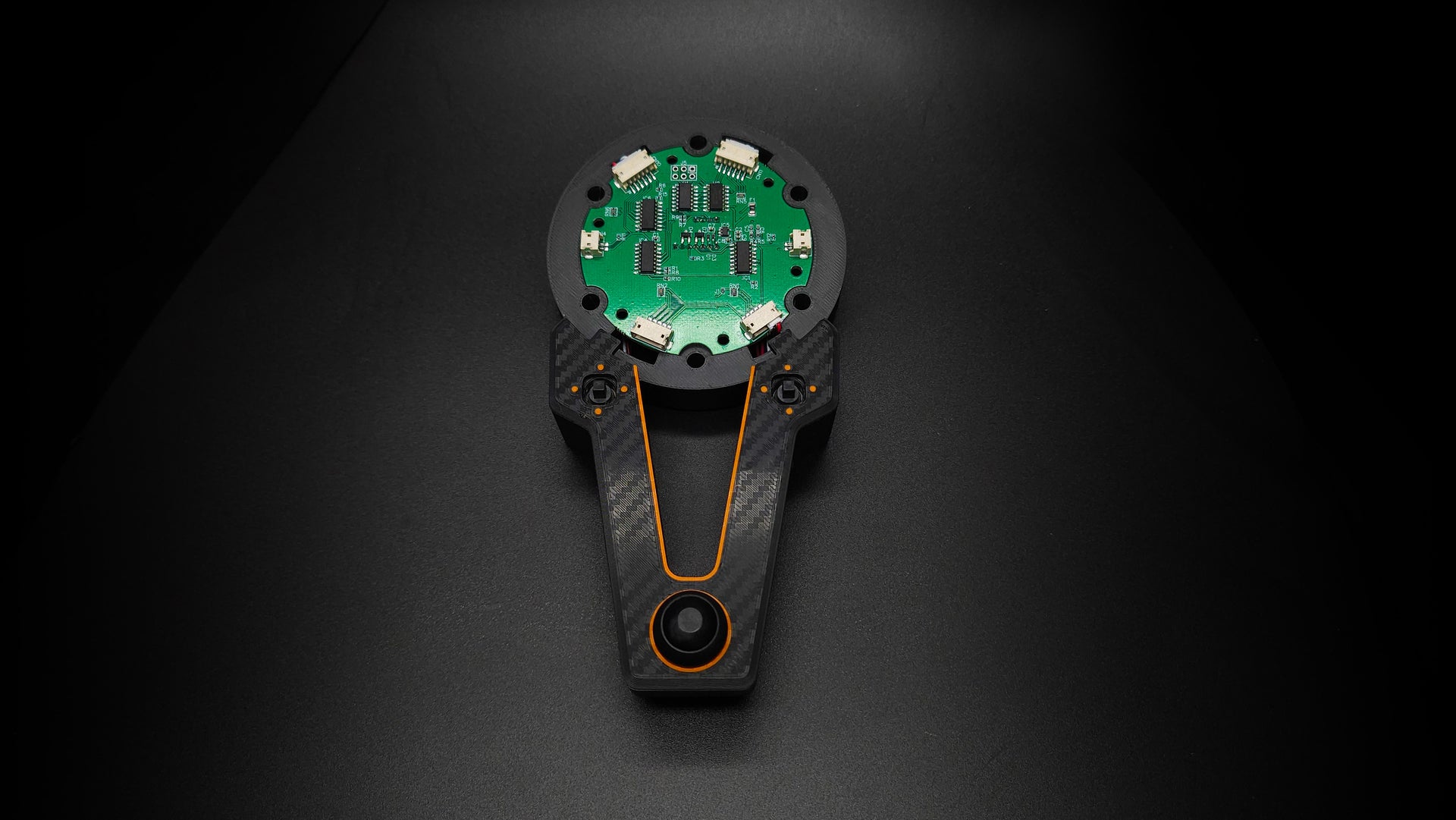

ST Internal PCB

ST Internal PCB

ST Series 1

ST Series 1

G29 Button mapping

G29 Button mapping

G920 Button mapping

G920 Button mapping

ST Series 1

ST Series 1

ST Series 1

Regular price
£99.00
Sale price
£99.00
Regular price
£89.00
Sold out
Unit price
per
Shipping calculated at checkout.

The brand new ST Series One is a wheel replacement with integrated electronics for the Logitech stock round wheel. At 320mm diameter the overall weight is 50 grams less than the stock Logitech wheel. It features a total of 11 inputs with a dedicated PS/Xbox button and two 5-way joysticks.

The aircraft grade alloy used for the super light two spoke 320mm rim is hand wrapped and stitched with Alcantara grade artificial leather. The rim features a standard 70mm hole pattern making it usable on most Direct Drive systems. All parts on the wheel can be serviced and swapped out as this is not a glued construction but fully assembled and built by us in the UK.

We now use the latest carbon fiber reinforced PLA with improved stiffness and strength for all our enclosures. PLA-CF exceeds the mechanical properties of standard PLA in bending resistance and impact strength by between 20% and 115%, Additionally we use SLA printers to manufacture most of the additional parts to achieve ABS like properties and finish.

We want to make sim racing affordable without locking you into an ecosystem. So we designed the ST Series 1 to bridge the gap from entry level sim racing to pro level sim racing by making it possible to use the same wheel on an entry level wheelbase such as the Logitech G29/G920/G923 series and then seamlessly, connect it to a Direct Drive wheelbase from other sim racing brands.

With the ST Series 1 we created a wheel that is fully compatible with the Logitech G29/G920 and G923, while also being compatible with Fanatec (DD1, DD2, CSL DD, DD Pro), Thrustmaster, Simucube, Simagic, Moza (R16, R9, R5) and any other direct drive system that will accept third party PC based wheels and accepts a 70mm standard 6 hole wheel pattern (note that for Fanatec you need our Fanatec adapter - not included). We achieved this by integrating our own electronics which when connected to the Logitech G series wheelbase, emulates the Logitech buttons and D-Pad. When connected to a PC via our Direct Drive PC adapter with the supplied coiled cable, it becomes a USB device that is recognized as a Windows game controller. The Direct Drive adapter is not included. When connected through the Fanatec adapter (not included), the wheel emulates a Fanatec wheel making it possible to use on a DD CSL with full force feedback enabled (note that you will require the Fanatec QR1).

The ST Series 1 is compatible with our quick release system but it is not a requirement and it is not included. Should you wish to use it with our quick release, add the S2 adapter as well as the motor mount to your order. For non quick release users, the ST Series 1 ships with a permanent connector which directly mounts the wheel onto your Logitech G29/G920/G923.  If you prefer to use the ST Series 1 as your permanent replacement to the stock Logitech round wheel you will not need anything else.

Using the quick release you will be able to attach our new Sequential Shifter (coming later in March 2024). Further more, you can connect 2 simultaniously allowing you to configure one as a handbrake - all fully Playstation and Xbox compatible.

The ST Series 1 comes with the MVH laserengraved faceplate but they can be easily swapped out for custom plates (sold separately - coming April 2024).
